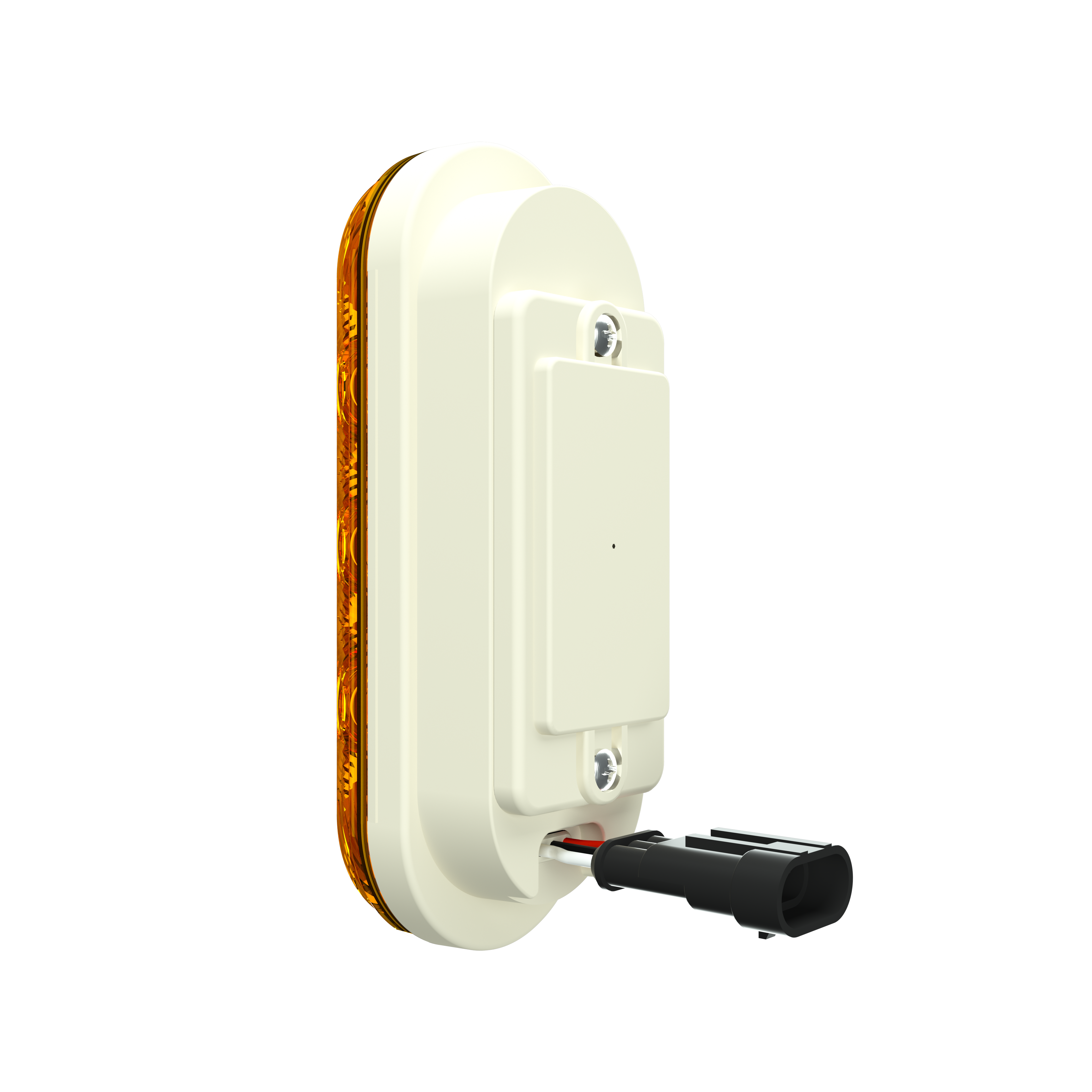

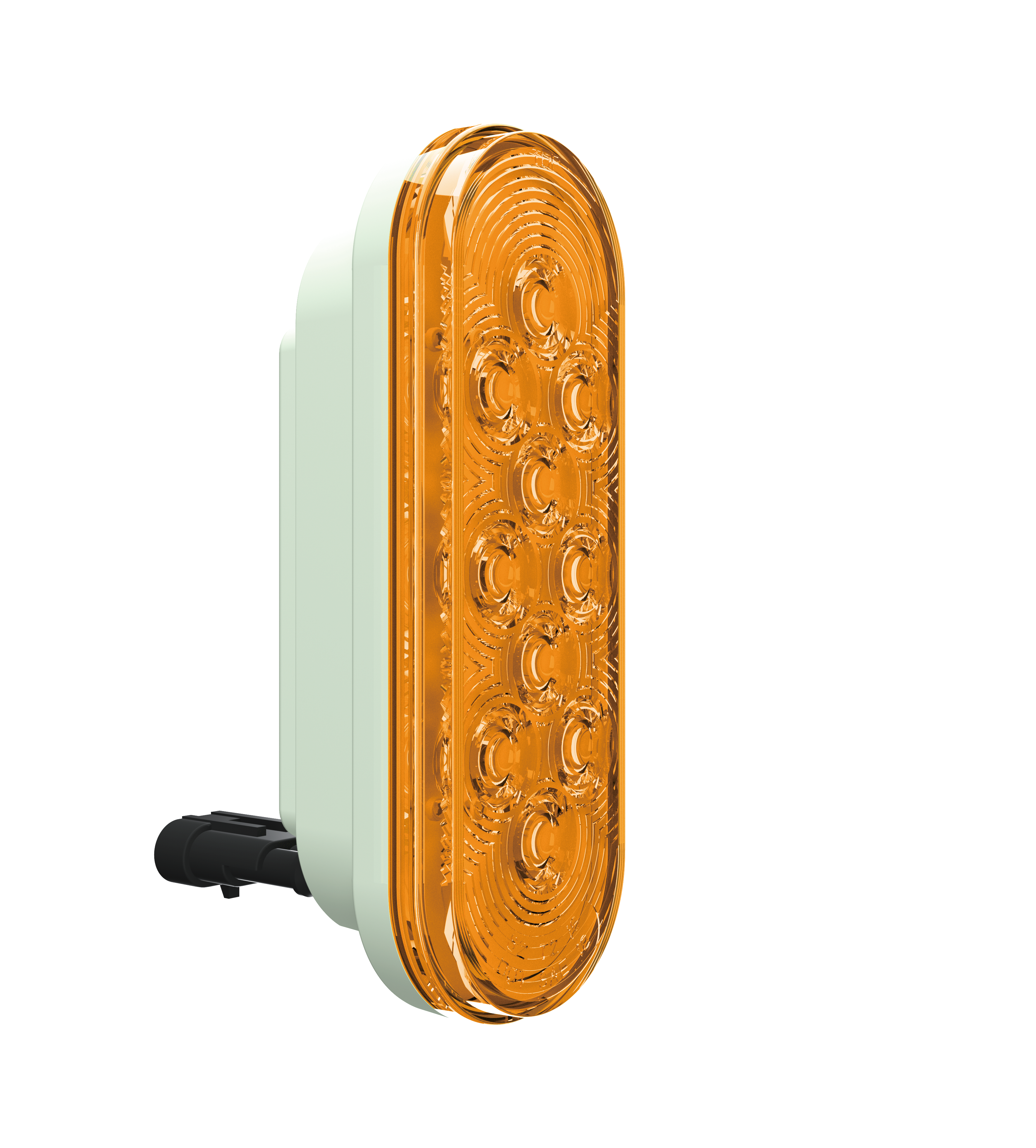

6" Oval LED Side Marker TrackLight

TrackLight GPS tracker model VT1711 looks and functions exactly the same as a standard 6” oval LED side lamp, providing the ultimate in covert tracking and simple installation using standard mounts. Rated at IP67, it is waterproof and shockproof and designed to function in harsh conditions on the road. Inside the lamp case is a powerful GPS module connected via a 4G/3G modem, ensuring location updates are received reliably and accurately. The built-in Lithium-Ion battery can provide up to 90 days of location reporting with automatic notifications of changed conditions when unpowered. The TrackLight tracker is true plug and drive. Installation is as simple as replacing one of your own lights, because that’s all there is to it.

Features & benefits

• Completely covert; looks, functions and installs the same as a normal LED side marker light
• Uses standard hardshell plug, no extra wiring required
• Real-time tracking; every 5 minutes when powered, every 15 minutes when unpowered and moving
• DOT approved red color lens
• Self-install, no special tools required; no cutting, drilling, or splicing needed
• ‘Fast Charging’ power circuit
• Uses TI ‘Power Path’ technology for instant wake-up when tail lights turned on
• Draws power from the stop and/or tail light circuits
• Future proof by utilizing the 4G cellular network
• Internal cellular and GPS antennas
• Super sensitive GPS tracking
• 3-axis accelerometer for motion sensing and impact detection
• Web-based device management

Technical specifications

• Material: Polycarbonate Lens, PC/ABS Housing
• Lens Color: Red
• Housing Color: White
• Mounting Type: Grommet, mounting flange
• Voltage: 9-15V
• Amperage: 0.018A-1.5A
• Certifications: FCC, ROHS, CE, DOT, IC, PTCRB
• CONNECTIVITY: 4G
• Backup Battery: 3600mAH
• Location Technology: GPS GLONASS
• IP67 rated enclosure

Related informations

• TrackLight Series Brochure (US EN)

Video introduction

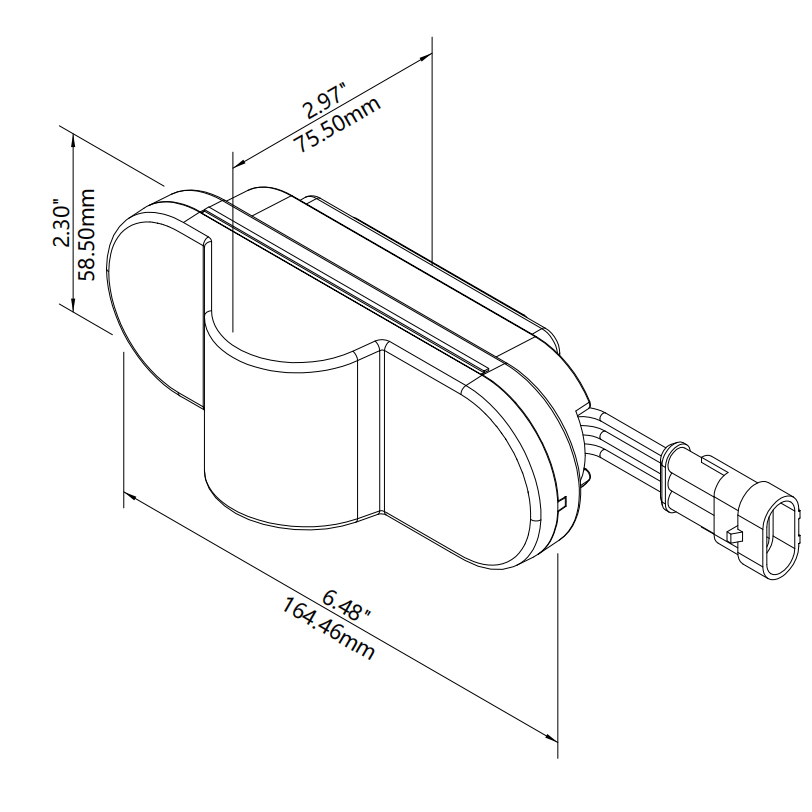

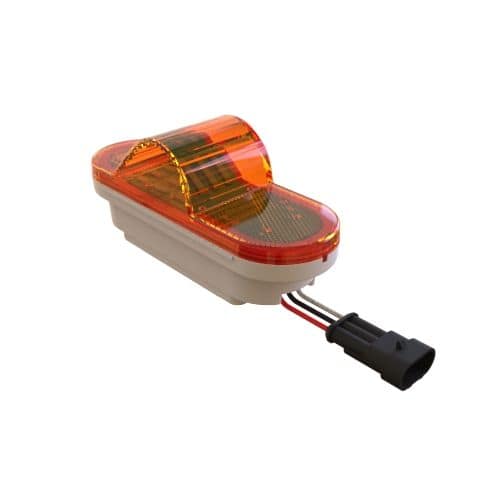

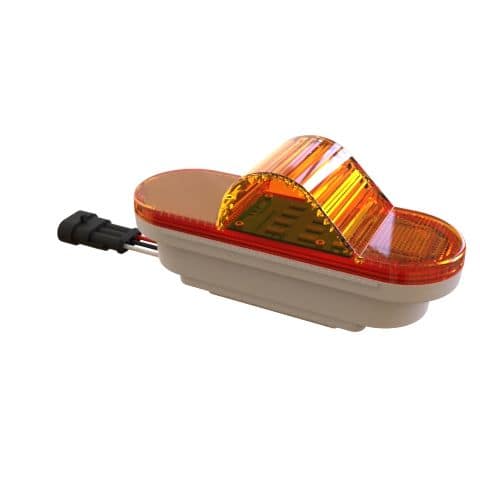

6" Oval LED Side Marker TrackLight

TrackLight VT2011 looks, functions and installs exactly the same as a standard 6” oval LED Side Marker/Turn light providing the ultimate in covert tracking and simple installation. Designed with a raised profile for enhanced visibility, it is waterproof and shockproof. Inside the lamp case is a powerful GPS module connected via a 3G/4G modem, ensuring location updates are received reliably and accurately.

The built-in Lithium-Ion battery can provide up to 90 days of location reporting with automatic notifications of changed conditions when unpowered. The lights meet all FMVSS P2 photometric requirements for visibility and safety and are DOT and FCC approved. Lenses and housing are made of tough ABS material and are ultrasonically welded.

The TrackLight tracker is true plug and drive. Installation is as simple as replacing one of your own side lights, because that’s all there is to it.

Features & benefits

• Completely covert; looks, functions and installs the same as a normal LED tail light
• Uses standard hardshell plug, no extra wiring required
• Real-time tracking; every 5 minutes when powered, every 15 minutes when unpowered and moving
• DOT approved amber colored side marker light
• Self-install, no special tools required; no cutting, drilling, or splicing needed
• ‘Fast Charging’ power circuit
• Uses TI ‘Power Path’ technology for instant wake-up when tail lights are turned on
• Draws power from the tail light circuits
• Future proof by utilizing the 4G cellular network
• Internal cellular and GPS antennas
• Super sensitive GPS tracking
• 3-axis accelerometer for motion sensing and impact detection
• Web-based device management

Technical specifications

• Material: Polycarbonate Lens, PC/ABS Housing
• Lens Color: Red
• Housing Color: White
• Mounting Type: Grommet, mounting flange
• Voltage: 9-15V
• Amperage: 0.018A-1.5A
• Certifications: FCC, ROHS, CE, DOT, IC, PTCRB
• CONNECTIVITY: 4G
• Backup Battery: 3600mAH
• Location Technology: GPS GLONASS
• IP67 rated enclosure

Related informations

• TrackLight Series Brochure (US EN)

Video introduction

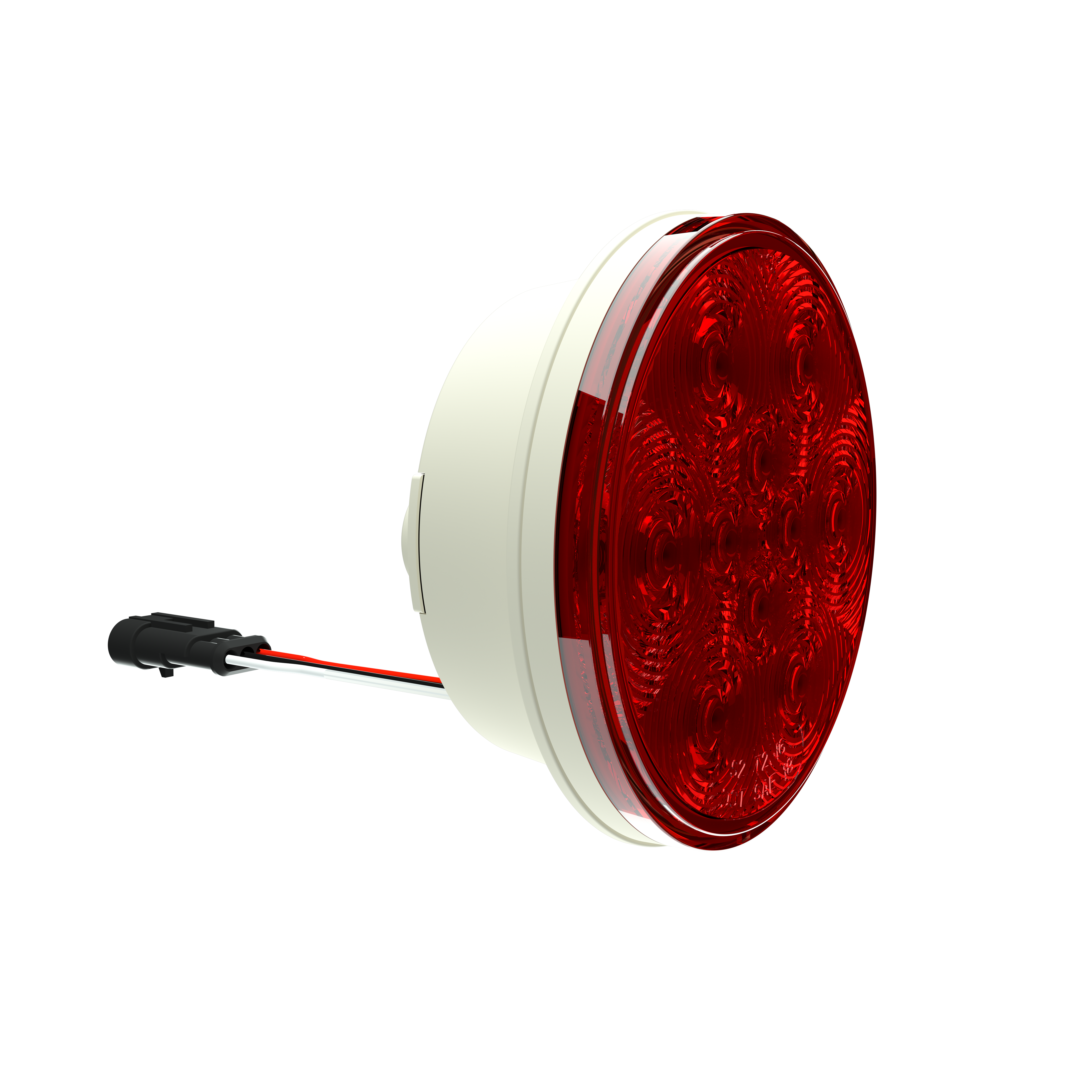

4'' Round LED Stop Tail TrackLight

VT2211 looks and functions exactly the same as a standard 4” LED tail light, providing the ultimate in covert tracking and simple installation. Designed to function in the harsh conditions on the road, it is waterproof and shockproof. Inside the lamp case is a powerful GPS module connected via a 4G/3G modem, ensuring location updates are received reliably and accurately.

The built-in Lithium-ion battery can provide up to 90 days of location reporting with automatic notifications of changed conditions. The TrackLight tracker is a true plug and drive. Installation is as simple as replacing one of your own tail lights because that’s all there is to it.

The lights meet all FMVSS photometric requirements for visibility and safety and are DOT and FCC approved. Lenses and housing are made of tough ABS material and are ultrasonically welded.

Features & benefits

• Completely covert; looks, functions and installs the same as a normal LED tail light
• Uses a standard hardshell plug, no extra wiring required
• Draws power from the stop and tail light circuits
• DOT approved red and clear color tail brake light
• Real-time tracking; every 5 minutes when powered, every 15 minutes when unpowered and moving
• Web-based device management
• Simple, secure API’s for integration into 3rd party Management Systems
• Highly accurate GPS tracking
• ‘Fast Charging’ power circuit
• Uses TI ‘Power Path’ technology for instant wake-up when tail lights are turned on
• Future proof by utilizing the 4G cellular network
• Ultra-low power consumption mode (<0.1mA)
• 3-axis accelerometer for motion sensing and impact detection

Technical specifications

• Material: Polycarbonate Lens, PC/ABS Housing
• Lens Color: Red/Clear
• Housing Color: White
• Mounting Type: Grommet, mounting ring
• Voltage: 9-36V
• Amperage: 0.018A-1.5A
• Size: 4″ Round
• Certifications: FCC, ROHS, CE, DOT, IC, PTCRB
• Connectivity: LTE
• Backup Battery: 3.7 V Li 3000 mAH
• Location Technology: GPS GLONASS
• IP67 sealed enclosure

Related informations

• VT2211 Brochure (EN)
• VT2211 User Manual(EN)

Video introduction

4'' Round LED Stop Tail TrackLight

TrackLight looks and functions exactly the same as a standard 4” LED tail light, providing the ultimate in covert tracking and simple installation. Designed to function in the harsh conditions on the road, it is waterproof and shockproof. Inside the lamp case is a powerful GPS module connected via a 4G/3G modem, ensuring location updates are received reliably and accurately.

The built-in Lithium-ion battery can provide up to 90 days of location reporting with automatic notifications of changed conditions. The TrackLight tracker is a true plug and drive. Installation is as simple as replacing one of your own tail lights because that’s all there is to it.

The lights meet all FMVSS photometric requirements for visibility and safety and are DOT and FCC approved. Lenses and housing are made of tough ABS material and are ultrasonically welded.

Features & benefits

• Completely covert; looks, functions and installs the same as a normal LED tail light
• Uses a standard hardshell plug, no extra wiring required
• Draws power from the stop and tail light circuits
• DOT approved red and clear color tail brake light
• Real-time tracking; every 5 minutes when powered, every 15 minutes when unpowered and moving
• Web-based device management
• Simple, secure API’s for integration into 3rd party Management Systems
• Highly accurate GPS tracking
• ‘Fast Charging’ power circuit
• Uses TI ‘Power Path’ technology for instant wake-up when tail lights are turned on
• Future proof by utilizing the 4G cellular network
• Ultra-low power consumption mode (<0.1mA)
• 3-axis accelerometer for motion sensing and impact detection

Technical specifications

• Material: Polycarbonate Lens, PC/ABS Housing
• Lens Color: Red/Clear
• Housing Color: White
• Mounting Type: Grommet, mounting ring
• Voltage: 9-15V
• Amperage: 0.018A-1.5A
• Size: 4″ Round
• Certifications: FCC, ROHS, CE, DOT, IC, PTCRB
• Connectivity: 4G/3G
• Backup Battery: 3.7 V Li 3000 mAH
• Location Technology: GPS GLONASS
• IP67 sealed enclosure

Related informations

• TrackLight Series Brochure (US EN)

Video introduction

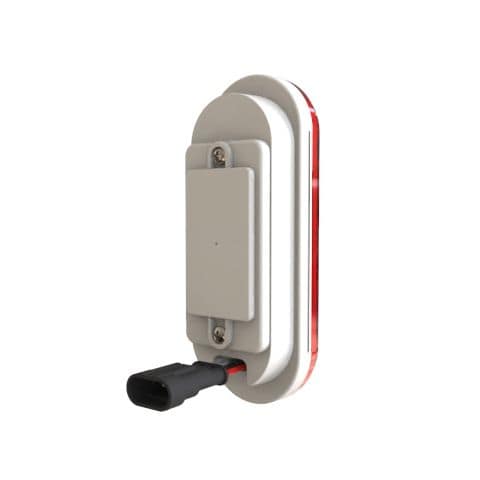

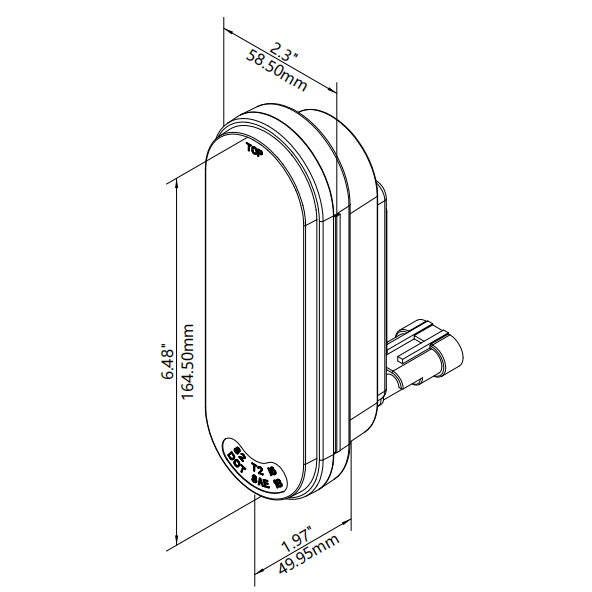

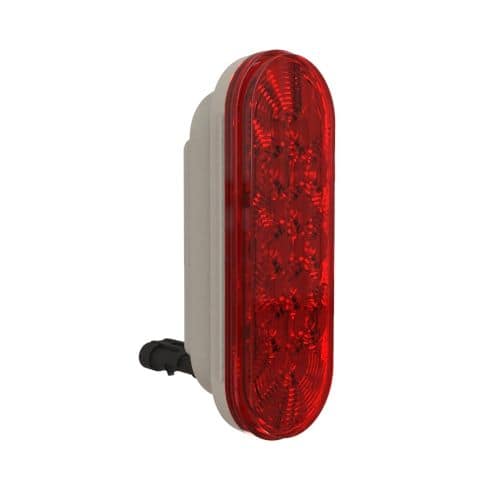

6" Oval LED Stop Tail TrackLight

TrackLight GPS tracker model VT1711 looks and functions exactly the same as a standard 6” oval LED tail light or side lamp, providing the ultimate in covert tracking and simple installation using standard mounts. Rated at IP67, it is waterproof and shockproof and designed to function in harsh conditions on the road. Inside the lamp case is a powerful GPS module connected via a 4G/3G modem, ensuring location updates are received reliably and accurately. The built-in Lithium-Ion battery can provide up to 90 days of location reporting with automatic notifications of changed conditions when unpowered. The TrackLight tracker is true plug and drive. Installation is as simple as replacing one of your own lights, because that’s all there is to it.

Features & benefits

• Completely covert; looks, functions and installs the same as a normal LED tail light
• Uses standard hardshell plug, no extra wiring required
• Real-time tracking; every 5 minutes when powered, every 15 minutes when unpowered and moving
• DOT approved red color lens
• Self-install, no special tools required; no cutting, drilling, or splicing needed
• ‘Fast Charging’ power circuit
• Uses TI ‘Power Path’ technology for instant wake-up when tail lights turned on
• Draws power from the stop and/or tail light circuits
• Future proof by utilizing the 4G cellular network
• Internal cellular and GPS antennas
• Super sensitive GPS tracking
• 3-axis accelerometer for motion sensing and impact detection
• Web-based device management

Technical specifications

• Material: Polycarbonate Lens, PC/ABS Housing
• Lens Color: Red
• Housing Color: White
• Mounting Type: Grommet, mounting flange
• Voltage: 9-15V
• Amperage: 0.018A-1.5A
• Certifications: FCC, ROHS, CE, DOT, IC, PTCRB
• CONNECTIVITY: 4G
• Backup Battery: 3600mAH
• Location Technology: GPS GLONASS
• IP67 rated enclosure

Related informations

• TrackLight Series Brochure (US EN)

Video introduction

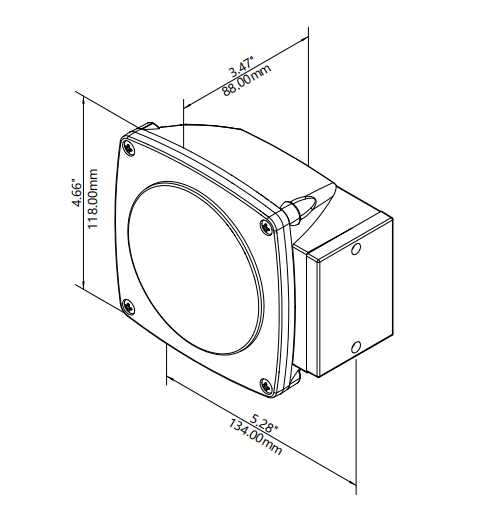

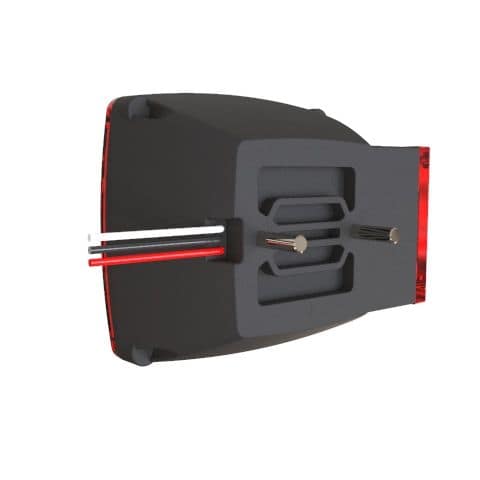

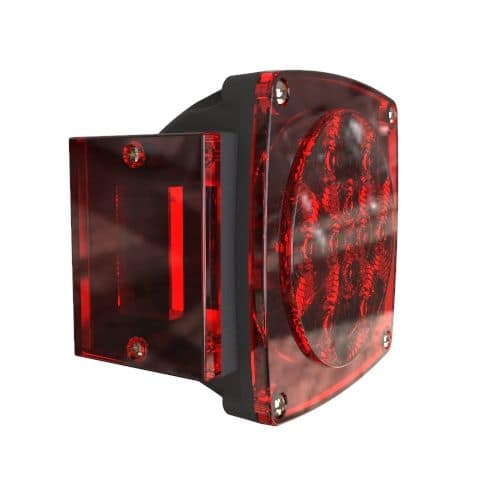

4” Square LED Combo Trailer Light

Features & benefits

• Completely covert; looks, functions and installs the same as a normal LED Stop/Turn/Tail trailer light
• Real-time tracking; every 5 minutes when powered, every 15 minutes when unpowered and moving
• DOT approved red colored lens
• Self-install, no special tools required; no cutting, drilling, or splicing needed
• ‘Fast Charging’ power circuit
• Uses TI ‘Power Path’ technology for instant wake-up when tail lights are turned on
• Draws power from the stop and/or tail light circuits
• Future proof by utilizing the 4G cellular network
• Internal cellular and GPS antennas
• Super sensitive GPS tracking
• Ultra-low power consumption mode (<0.1mA)
• 3-axis accelerometer for motion sensing and impact detection
• Web-based device management

Technical specifications

• Material: Polycarbonate Lens, PC/ABS Housing
• Lens Color: Red
• Housing Color: Black
• Voltage: 9-15V
• Amperage: 0.05A-1.5A
• Certifications: FCC, ROHS, CE, DOT, IC, PTCRB
• CONNECTIVITY: 4G
• Back Up Battery: 3.7 V Li 6100 mAH
• Location Technology: GPS GLONASS
• IP67 sealed enclosure

Related informations

• TrackLight Series Brochure
